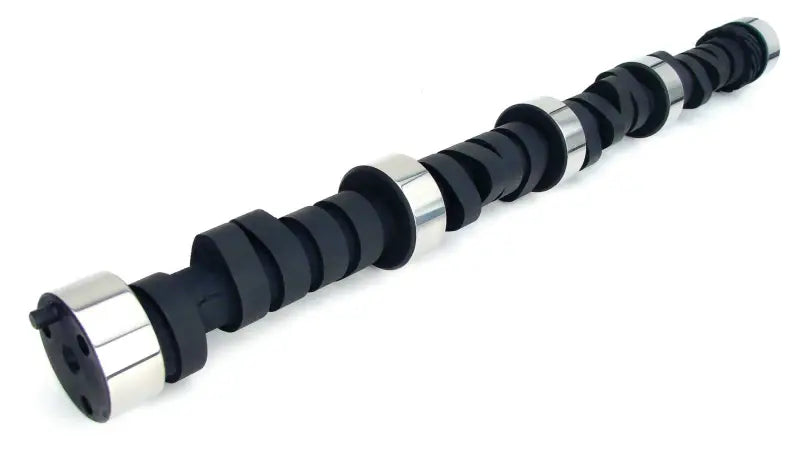

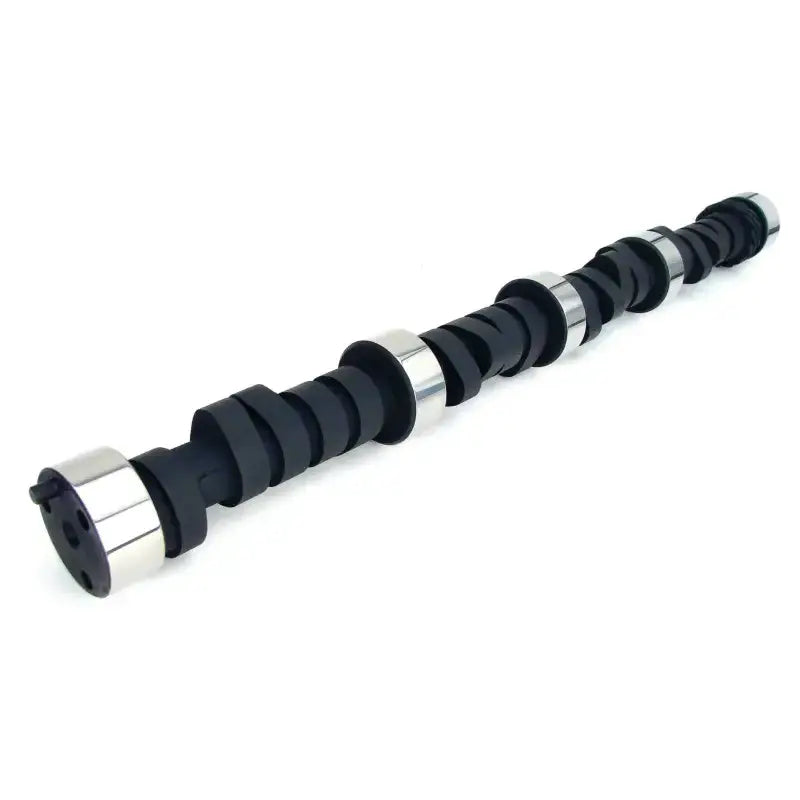

12-250-3 Competition Cams Camshaft Chevy Small Block

12-250-3 Competition Cams Camshaft Chevy Small Block

Elevate your engine's performance with the 12-250-3 Competition Cams Camshaft, specifically designed for Chevy Small Block applications. The Xtreme Energy Cams™ technology harnesses the latest advancements in valve train components and camshaft lobe design to provide superior throttle response and enhanced top-end horsepower.

Key Features:

• Aggressive Lobe Design: Achieve better throttle response and increased horsepower compared to other cams with the same duration.
• Engine Vacuum Improvement: Enhanced vacuum capabilities allow for a step up in duration, leading to greater overall performance.
• Versatile Applications: Ideal for street and street/strip applications where both responsiveness and power are crucial.
• Hydraulic Flat Tappet Type: Designed for smooth operation across a broad RPM range.

Specifications:

• Engine Compatibility: Chevy Small Block 4.3L-6.6L / 262-400 Cubic Inch
• Recommended Use: Mild street performance to mild race
• RPM Range: Low: 2300 RPM - High: 6500 RPM
• Intake Duration at 0.050 Inch Lift: 240 Degrees
• Exhaust Duration at 0.050 Inch Lift: 246 Degrees
• Advertised Intake Duration: 284 Degrees
• Advertised Exhaust Duration: 296 Degrees
• Intake Valve Lift: 0.507 Inch
• Exhaust Valve Lift: 0.510 Inch
• Lobe Separation Angle: 110 Degrees
• Intake Centerline Angle: 106 Degrees
• Grind Number: XE284H

Compatibility Note:

Due to the aggressive lobe designs, it is essential that valve springs, locks, retainers, pushrods, lifters, rocker arms, and other related components are properly matched to the camshaft for optimal performance.

Warranty:

The product comes with a limited 1-Year Warranty, ensuring your investment is protected.
